Double Swing Door Access Control Wiring And Installation Drawing

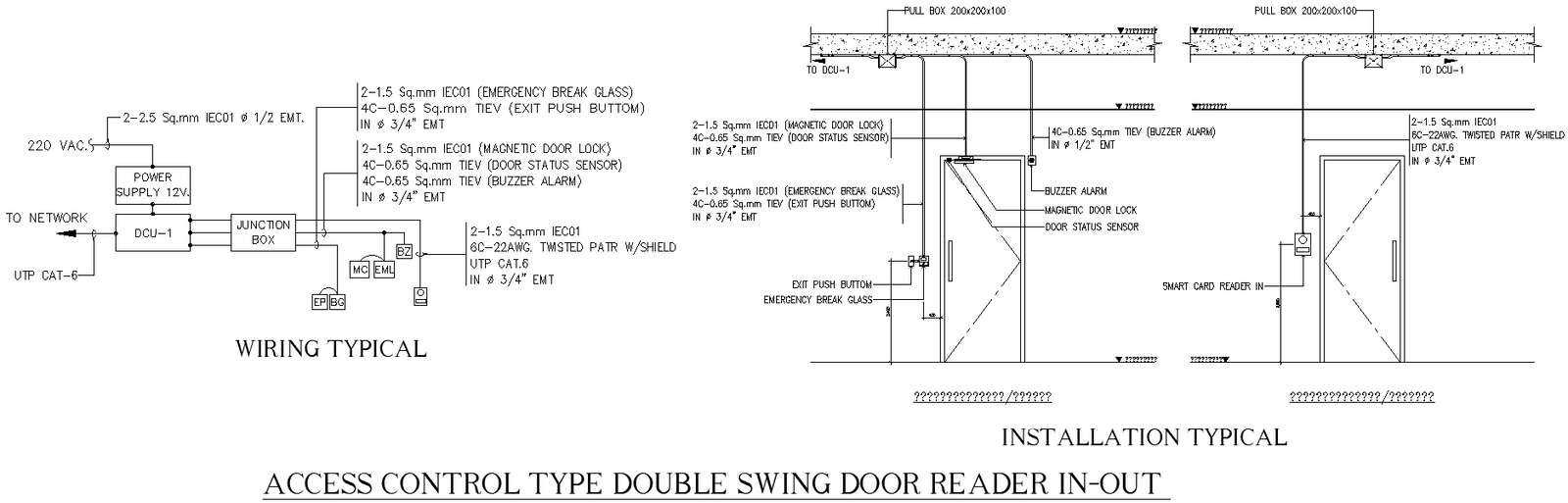

This AutoCAD DWG file illustrates a complete wiring and installation layout for a double swing door access control system with a reader in and out configuration. The drawing clearly shows typical wiring connections between the power supply unit 12V, DCU controller, junction box, network connection using UTP CAT 6 cable, and field devices. Electrical routing is defined using 1/2 inch and 3/4 inch EMT conduits, with cable specifications such as 2 x 1.5 sq mm IEC01, 4-core 0.65 sq.mm TIEV, and shielded twisted pair cables. The wiring diagram includes emergency break glass, exit push button, magnetic door lock, door status sensor, buzzer alarm, and smart card reader connections.

The installation layout provides door elevation views showing precise mounting locations for magnetic locks, readers, push buttons, and emergency devices on both leaves of the double swing door. Pull box sizes of 200 x 200 x 100 mm are marked above the ceiling slab, along with clear cable routing paths to the control unit. This DWG file is ideal for architects, electrical engineers, security consultants, and system integrators who require accurate access control door wiring drawings for commercial and institutional projects. The drawing supports installation planning, coordination, and compliance with standard access control system practices.
